apoc.export.cypher.graph

此过程不被认为是多线程安全运行的。因此，并行运行时不支持它。更多信息，请参阅Cypher 手册 → 并行运行时。

详情
语法	`apoc.export.cypher.graph(graph, file [, config ]) :: (file, batches, source, format, nodes, relationships, properties, time, rows, batchSize, cypherStatements, nodeStatements, relationshipStatements, schemaStatements, cleanupStatements)`
描述	将给定的图（包括索引）导出为 Cypher 语句到提供的文件（默认：Cypher Shell）。
输入参数	名称	类型	描述
	`graph`	`MAP`	要导出的图。
	`file`	`STRING`	数据将导出到的文件名称。
	`config`	`MAP`	`{ stream = false :: BOOLEAN, batchSize = 20000 :: INTEGER, bulkImport = false :: BOOLEAN, timeoutSeconds = 100 :: INTEGER, compression = 'None' :: STRING, charset = 'UTF_8' :: STRING, sampling = false :: BOOLEAN, samplingConfig :: MAP }`。默认值为：`{}`。
返回参数	名称	类型	描述
	`file`	`STRING`	数据导出到的文件名称。
	`batches`	`INTEGER`	导出运行时批处理的数量。
	`source`	`STRING`	导出数据的摘要。
	`format`	`STRING`	文件导出的格式。
	`nodes`	`INTEGER`	导出节点的数量。
	`relationships`	`INTEGER`	导出关系的数量。
	`properties`	`INTEGER`	导出属性的数量。
	`time`	`INTEGER`	导出的持续时间。
	`rows`	`INTEGER`	返回的行数。
	`batchSize`	`INTEGER`	导出运行时批处理的大小。
	`cypherStatements`	`ANY`	执行的 Cypher 语句。
	`nodeStatements`	`ANY`	执行的节点语句。
	`relationshipStatements`	`ANY`	执行的关系语句。
	`schemaStatements`	`ANY`	执行的模式语句。
	`cleanupStatements`	`ANY`	执行的清理语句。

用法示例

本节中的示例基于以下示例图

CREATE (TheMatrix:Movie {title:'The Matrix', released:1999, tagline:'Welcome to the Real World'})
CREATE (Keanu:Person {name:'Keanu Reeves', born:1964})
CREATE (Carrie:Person {name:'Carrie-Anne Moss', born:1967})
CREATE (Laurence:Person {name:'Laurence Fishburne', born:1961})
CREATE (Hugo:Person {name:'Hugo Weaving', born:1960})
CREATE (LillyW:Person {name:'Lilly Wachowski', born:1967})
CREATE (LanaW:Person {name:'Lana Wachowski', born:1965})
CREATE (JoelS:Person {name:'Joel Silver', born:1952})
CREATE
(Keanu)-[:ACTED_IN {roles:['Neo']}]->(TheMatrix),
(Carrie)-[:ACTED_IN {roles:['Trinity']}]->(TheMatrix),
(Laurence)-[:ACTED_IN {roles:['Morpheus']}]->(TheMatrix),
(Hugo)-[:ACTED_IN {roles:['Agent Smith']}]->(TheMatrix),
(LillyW)-[:DIRECTED]->(TheMatrix),
(LanaW)-[:DIRECTED]->(TheMatrix),
(JoelS)-[:PRODUCED]->(TheMatrix);

下面的 Neo4j Browser 可视化显示了导入的图

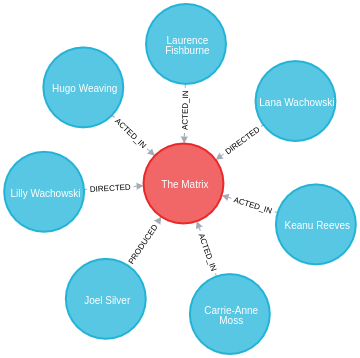

图 1. 电影图可视化

apoc.export.cypher.graph 过程将虚拟图导出到 CSV 文件或作为流。

本节中的示例基于一个虚拟图，该图包含所有 PRODUCED 关系以及该关系两端的节点。它们还使用apoc.graph.fromPaths通过从每个查询中第一个 MATCH 子句收集的数据中提取节点和关系来生成虚拟子图，并且 apoc.export.cypher.graph 过程使用此子图。

在以下示例中，由 apoc.graph.fromPaths 生成的虚拟图以 Cypher 语句的形式导出到文件 movies-producers.cypher

MATCH path = (:Person)-[produced:PRODUCED]->(:Movie)
WITH collect(path) AS paths
CALL apoc.graph.fromPaths(paths, "producers", {})
YIELD graph AS g
CALL apoc.export.cypher.graph(g, "movies-producers.cypher", {})
YIELD file, nodes, relationships, properties
RETURN file, nodes, relationships, properties;

结果
file	nodes	relationships	properties
"movies-producers.cypher"	2	1	5

下一个示例需要以下设置

movies-producers.cypher

:begin
CREATE CONSTRAINT uniqueConstraint FOR (node:`UNIQUE IMPORT LABEL`) REQUIRE (node.`UNIQUE IMPORT ID`) IS UNIQUE;
:commit
:begin
UNWIND [{_id:31450, properties:{tagline:"Welcome to the Real World", title:"The Matrix", released:1999}}] AS row
CREATE (n:`UNIQUE IMPORT LABEL`{`UNIQUE IMPORT ID`: row._id}) SET n += row.properties SET n:Movie;
UNWIND [{_id:31457, properties:{born:1952, name:"Joel Silver"}}] AS row
CREATE (n:`UNIQUE IMPORT LABEL`{`UNIQUE IMPORT ID`: row._id}) SET n += row.properties SET n:Person;
:commit
:begin
UNWIND [{start: {_id:31457}, end: {_id:31450}, properties:{}}] AS row
MATCH (start:`UNIQUE IMPORT LABEL`{`UNIQUE IMPORT ID`: row.start._id})
MATCH (end:`UNIQUE IMPORT LABEL`{`UNIQUE IMPORT ID`: row.end._id})
CREATE (start)-[r:PRODUCED]->(end) SET r += row.properties;
:commit
:begin
MATCH (n:`UNIQUE IMPORT LABEL`)  WITH n LIMIT 20000 REMOVE n:`UNIQUE IMPORT LABEL` REMOVE n.`UNIQUE IMPORT ID`;
:commit
:begin
DROP CONSTRAINT uniqueConstraint;
:commit

以下查询将虚拟图的流从静态值存储返回到 cypherStatements 列

MATCH path = (:Person)-[produced:PRODUCED]->(:Movie)
WITH collect(path) AS paths
CALL apoc.graph.fromPaths(paths, "producers", {})
YIELD graph AS g
CALL apoc.export.cypher.graph(g, null, {stream: true})
YIELD file, nodes, relationships, properties, cypherStatements
RETURN file, nodes, relationships, properties, cypherStatements;

结果
file	nodes	relationships	properties	cypherStatements
NULL	2	1	5	":begin CREATE CONSTRAINT uniqueConstraint FOR (node:`UNIQUE IMPORT LABEL`) REQUIRE (node.`UNIQUE IMPORT ID`) IS UNIQUE; :commit :begin UNWIND [{_id:31450, properties:{tagline:\"Welcome to the Real World\", title:\"The Matrix\", released:1999}}] AS row CREATE (n:`UNIQUE IMPORT LABEL`{`UNIQUE IMPORT ID`: row._id}) SET n += row.properties SET n:Movie; UNWIND [{_id:31457, properties:{born:1952, name:\"Joel Silver\"}}] AS row CREATE (n:`UNIQUE IMPORT LABEL`{`UNIQUE IMPORT ID`: row._id}) SET n += row.properties SET n:Person; :commit :begin UNWIND [{start: {_id:31457}, end: {_id:31450}, properties:{}}] AS row MATCH (start:`UNIQUE IMPORT LABEL`{`UNIQUE IMPORT ID`: row.start._id}) MATCH (end:`UNIQUE IMPORT LABEL`{`UNIQUE IMPORT ID`: row.end._id}) CREATE (start)-[r:PRODUCED]→(end) SET r += row.properties; :commit :begin MATCH (n:`UNIQUE IMPORT LABEL`) WITH n LIMIT 20000 REMOVE n:`UNIQUE IMPORT LABEL` REMOVE n.`UNIQUE IMPORT ID`; :commit :begin DROP CONSTRAINT uniqueConstraint; :commit "

apoc.export.cypher.graph 的更多文档
